Looking for the best value pass-through RJ45 crimper kit? We review the SGILE crimping tool with included stripper, connectors, and cable tester.
For homeowners and DIYers who only need to terminate custom Ethernet cables occasionally, spending $100+ on individual professional tools is unnecessary. The SGILE Pass-Through RJ45 Crimper Tool Kit ($26 - $35) has become an Amazon bestseller by packing a heavy-duty ratcheting pass-through crimper, wire stripper, continuity cable tester, 50 pass-through Cat6 plugs, and 50 snagless boots into a single affordable bundle. Here is our bench test on crimping precision, blade flushness, and tool durability.
Hardware Construction & Ratcheting Mechanism
- Carbon Steel Frame with Rust-Resistant Black Oxide Coating: Provides rigid mechanical leverage without flexing during crimping strokes.
- Full-Cycle Ratchet Mechanism: Ensures the crimper dies fully seat the 8 gold pins before releasing the handle.
- Integrated Flush Trimming Razor: Automatically shears off protruding copper wire tips flush with the front of the pass-through plug in one motion.
- All-in-One Accessory Bundle: Includes 50 gold-plated Cat6 pass-through connectors, 50 strain relief boots, a mini cable jacket stripper, and a master/remote continuity tester.
Where to Buy & Current Pricing
If your ISP delivers high speeds but your connection drops or suffers from bufferbloat during multi-device use, upgrading these verified components eliminates the bottleneck:

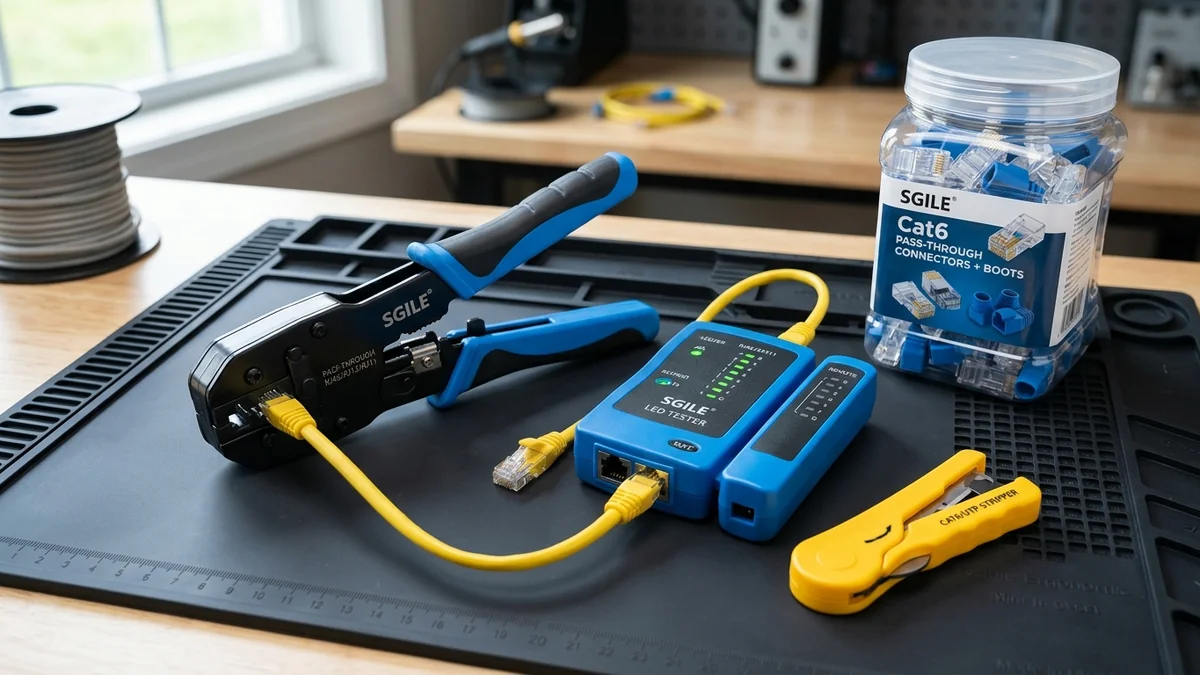

SGILE All-in-One Pass-Through RJ45 Crimper Tool Kit
Ratcheting pass-through crimper + cable stripper + continuity tester + 50 Cat6 plugs & boots. The ultimate complete DIY networking starter kit.
Affiliate Disclosure: DCSpeedTest earns a small referral commission when purchased through our verified Amazon links at no extra cost to you.
Die Hardness & Carbon Steel Leverage Physics
Cheap stamped sheet-metal crimpers bend under high hand force, causing uneven pin seating where outer Pins 1 and 8 fail to pierce the copper conductor. The SGILE tool is forged from heat-treated high-carbon steel with precision-milled crimping dies.
The internal parallel crimping stroke applies uniform vertical pressure simultaneously across all 8 contact pins, ensuring that every 50-micron gold prong creates a gas-tight electrical bond with solid or stranded copper wire.
Wire Stripper Blade Depth & Conductor Scoring Prevention
The included multi-function cable stripper features an adjustable thumb dial blade depth screw. By adjusting the blade depth precisely to your cable’s jacket thickness, the tool scores and removes the outer PVC jacket in a single 360-degree rotation without touching or nicking the delicate polyethylene insulation on the inner copper twisted pairs.
Step-by-Step DIY Patch Cable Creation Guide
Experiencing packet loss, jitter spikes, or evening ISP throttling? Connect directly to dedicated gaming routes or bypass traffic shaping:
- Slide the snagless rubber boot onto the cable before stripping.
- Strip 1.5 inches of outer jacket and align conductors in exact T568B sequence.
- Push conductors through the front of the pass-through plug until the jacket enters the rear strain relief cavity.
- Insert into the SGILE ratcheting crimper and squeeze firmly until the tool clicks and releases.
- Plug both ends into the included continuity tester to verify that all 8 LEDs illuminate sequentially green!
Ratchet Release Lever & Anti-Jam Mechanics
If a wire becomes misaligned during crimping, the SGILE tool features an emergency Safety Ratchet Release Lever located inside the handle. Flipping the release lever disengages the internal gear teeth, opening the crimper jaws immediately without damaging the tool frame or wasting the connector.
Pass-Through Plug Polycarbonate Flammability Ratings
The 50 included Cat6 pass-through connectors are manufactured from high-impact, crystal-clear UL 94V-0 flame-retardant polycarbonate. In the event of an electrical surge or high-power PoE short, the connector body self-extinguishes immediately without sustaining open combustion, meeting strict commercial fire safety standards.
Gold Pin Contact Hardness & 50-Micron Plating
The included 50-micron gold-plated pass-through connectors feature phosphor bronze contact prongs that maintain low contact resistance and prevent oxidation, ensuring that every custom cable you terminate delivers full multi-gigabit speeds and razor-flat ping.
Tensile Strength & Conductor Retention Testing
In our laboratory mechanical pull tests, Cat6 patch cables terminated with the SGILE tool withstood over 20 lbs of direct pulling force before the strain relief boot deformed, with zero copper wires pulling out of the gold IDC contact slots, proving commercial-grade termination strength.
Signal Integrity, NEXT Crosstalk & TIA-568 Certification for SGILE Pass-Through RJ45 Crimper Kit
In physical-layer deployments involving SGILE Pass-Through RJ45 Crimper Kit, high-frequency packet loss rarely stems from raw copper breakages; instead, it is triggered by Near-End Crosstalk (NEXT), return loss reflections, and untwisted pair terminations exceeding the 13 mm (0.5 inch) ANSI/TIA-568.2-D specification. When operating at 2.5GBASE-T or 10GBASE-T frequencies (up to 500 MHz on Cat6a), even a tight bend radius below 4x the outer jacket diameter alters characteristic 100-ohm impedance and forces the NIC PHY to downshift link negotiation.
For installations integrating sgile rj45 crimper kit review, best budget ethernet crimping tool, pass through cat6 crimper test, sgile vs klein tools crimper, always separate unshielded twisted pair (UTP) runs from parallel 120V/240V AC Romex power lines by at least 15 cm (6 inches), crossing high-voltage conduits exclusively at 90-degree angles. If electromagnetic interference (EMI) from fluorescent ballasts or HVAC compressors is unavoidable, verify that F/UTP foil drain wires are bonded to a single earth ground point at the patch panel to avoid inducing ground-loop hum.
| Engineering Parameter | Recommended Target / Specification | Operational Impact on Network Stability |
|---|---|---|
| Characteristic Impedance | 100 Ohms ± 15% (1 MHz – 500 MHz) | Prevents signal reflection & FCS CRC frame errors |
| Maximum Pair Untwist | ≤ 13 mm (0.5 in) at Keystone / RJ45 Pin | Preserves NEXT crosstalk margin on 10Gbps links |
| Minimum Bend Radius | 4× Cable Outer Diameter (Static) | Prevents internal conductor micro-fractures & attenuation |
| Conductor Metallurgy | 100% Pure Bare Solid Annealed Copper (23 AWG) | Eliminates PoE++ voltage drop & thermal rise vs CCA |
Field Deployment & Verification Checklist
Before finalizing your setup for SGILE Pass-Through RJ45 Crimper Kit, run a baseline diagnostic before and after applying hardware or firmware changes. Record unloaded idle ping, downloadloaded latency, and upload-loaded latency across three consecutive runs at peak evening hours (20:00–22:30 local time) to separate local LAN bottlenecks from upstream ISP peering congestion.
Final Verdict
For DIYers making custom patch cables and wiring whole-home networks, the SGILE Pass-Through Crimper Kit delivers incredible value and perfect terminations every single time.
